Carl Stahl will ensure an effective solution for your project

If you are looking for an original, highly functional, and safe solution for your architectural project, take advantage of the wide range of services offered by Carl Stahl, which will prepare a tailored offer for you. In the field of architecture you can use the following products and services:





• stainless steel cable assemblies I-SYS^®
• stainless steel nets X-TEND^®
• colored nets X-TEND^®
• light nets with LED diodes X-LED^®
• connectors TENNECT^® for membrane roofing
• interior hanging systems Posilock^®

I-SYS®	X-TEND®	Colored nets X-TEND®
X-LED®	TENNECT®	POSILOCK®
GREENCABLE®

For a specific project, we will recommend the most suitable diameter of stainless steel cables, width of the mesh, dimensions of cable assemblies, structures, and the use of other accessories. We provide comprehensive services to our clients - planning, static analyses, delivery, installation, and also professional training, lectures, and consulting.

Most common uses of Carl Stahl products:

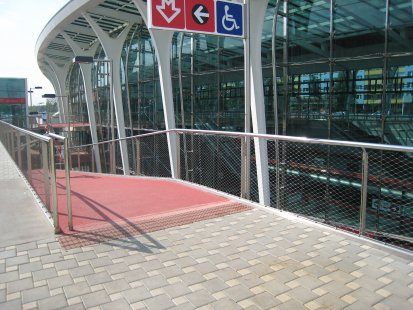

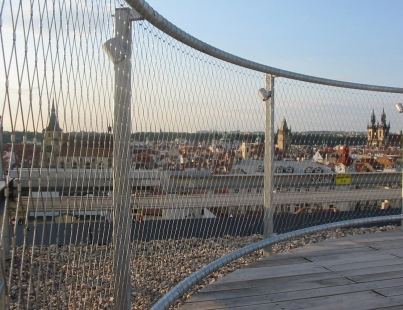

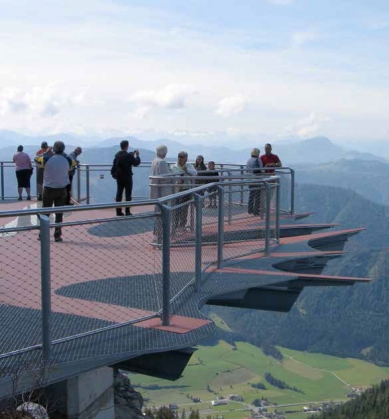

• Safety guardrail infills
• Cable supporting structures

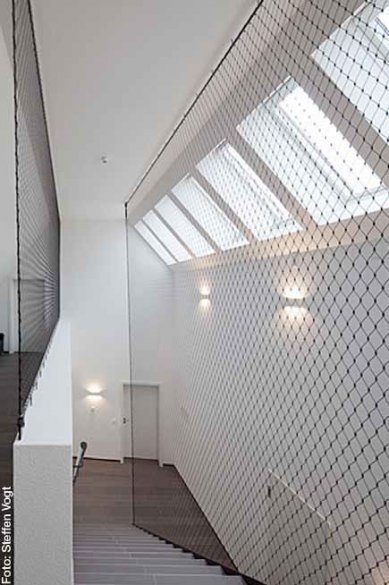

• Other infills against potential falls

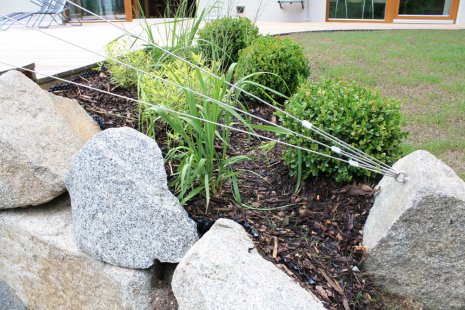

• Greening building facades

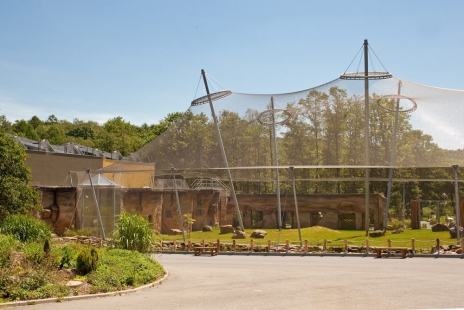

• Enclosures and aviaries for zoos
• Textile architecture
• Membrane roofing
• ETFE foil, UV permeable
• HighEnd Design
• lit nets X-LED® with LED diodes

Introducing stainless steel cable assemblies I-SYS®

Extremely stable and durable cables made of top quality AISI316 stainless steel are particularly suitable for architects, builders, private builders, decorators, and interior designers.

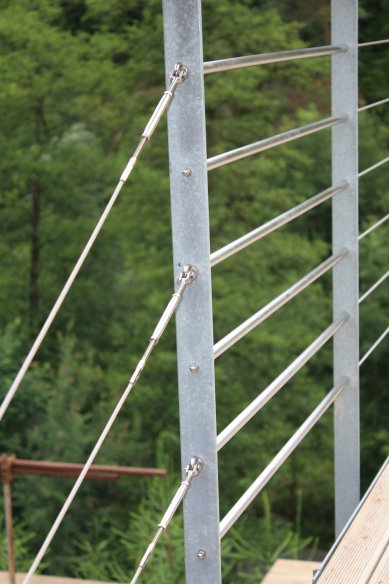

You will mainly use the stainless steel cable assemblies I-SYS® for safety railings and staircases, eliminating large gaps, fall protection, stiffening load-bearing elements, such as hangers and beams for example roof elements, interior hangers for functional division of interior spaces, but also as aesthetically interesting canopies with increased stability and minimal material usage or as facade meshes for plant growth.

Criteria for selecting the structure and material of the cables:
• tensile strength/market limit strength
• function – standing or moving cables/pulleys
• environmental influences
• required cable termination

1. Type: SPIRAL CABLES

• Construction: 1x7, 1x19, 1x37, 1x61, 1x91, 1x127-547

2. Type: STRAND CABLES

• Construction: 6x7, 6x19

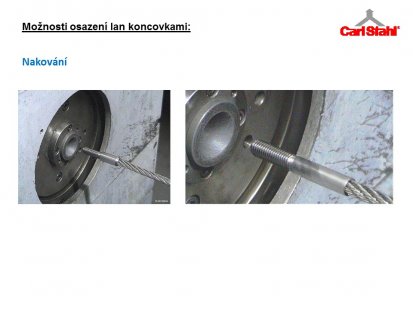

Options for fitting cables with terminals
• hydraulic crimping
• forging

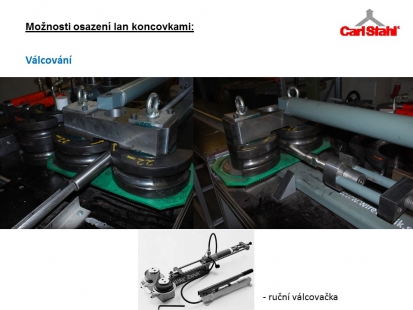

• rolling

Options for terminating cables with stainless terminals
• self-locking terminals
• terminals with external threads
• terminals with internal threads
• forks
• eyes
• terminals with round heads
• and many other solutions

Technical parameters:
• in standard diameter for 6x7 construction we have cables with a diameter of 1 mm – 8mm; for 1x19 cable construction, we have cables with a diameter of up to 26mm
• stainless steel I-SYS^® cables are made from high-quality stainless steel cables of material class 1.4401
• surface of stainless cables I-SYS^®: AISI 316

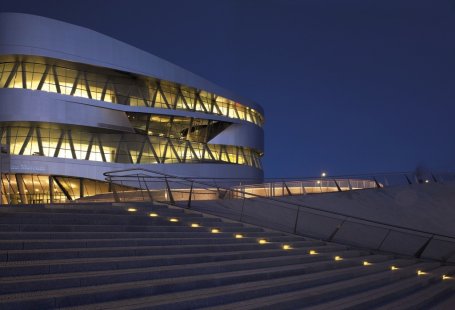

Get inspired by already completed I-SYS® projects

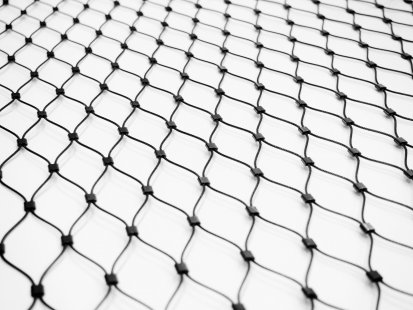

Stainless steel nets X-TEND® - Made in Germany

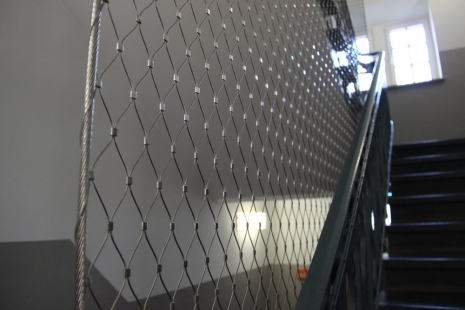

Are you designing safety railings for a family house or a sports hall? Are you implementing facade greening of buildings? Do you need a self-supporting aviary or its roofing? Are you looking for a functional material with a long service life and modern appearance? Take advantage of the innovative solutions in the form of X-TEND® stainless steel nets, which are lightweight, airy, and simultaneously strong with a load capacity of several tons.

How are stainless nets secured?
• Using perimeter profiles
• Using perimeter cables


Technical parameters
• in standard diameters of 1 mm; 1.5 mm; 2 mm; 3 mm; 4 mm
• depending on the diameter of the cable, it is possible to create mesh widths of 25 - 200 mm or higher
• nets made from high-quality stainless steel cables of material class 1.4401, AISI316

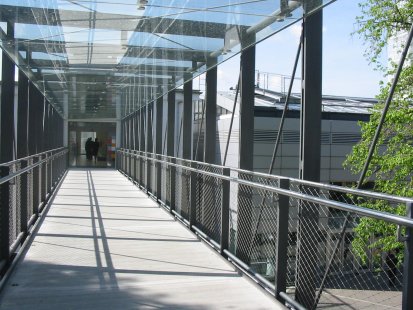

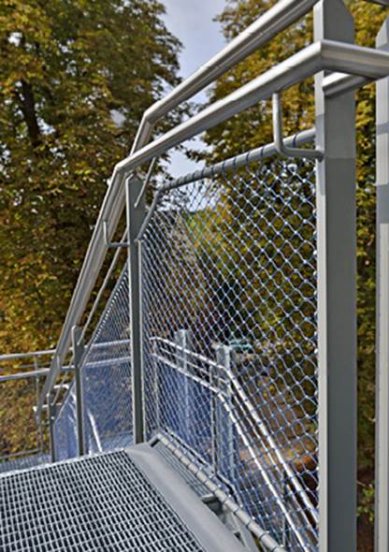

When planning, you can fully rely on the support of the experts at Carl Stahl. We will solve your statistically demanding ideas and show you in advance on a 3D model how the entire implementation will look. Our technicians will carry out complete installations of aviaries, railings, bridge infills, support facades for greening buildings, and other solutions from the X-TEND® stainless steel netting



Detail execution

X-TEND® nets are custom made by Carl Stahl

The guarantee for the customer is ETA certification, confirming the use of X-TEND® stainless steel nets as fall protection elements both horizontally and vertically. We also hold certifications from the German building institute for using nets as guardrail infills.

Perfect symbiosis of X-TEND®. Functionality and style

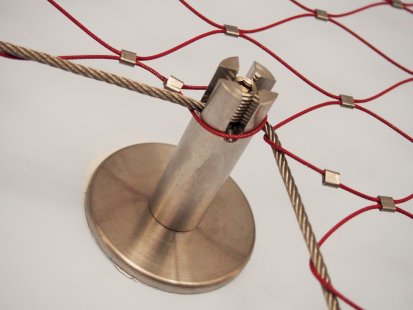

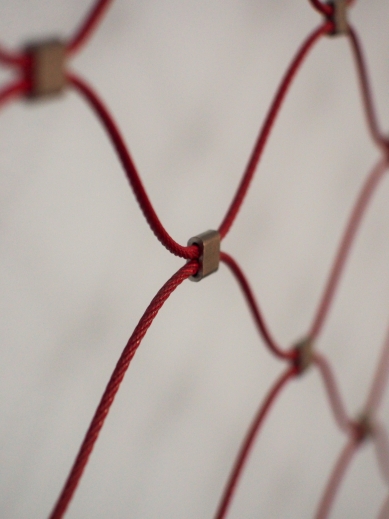

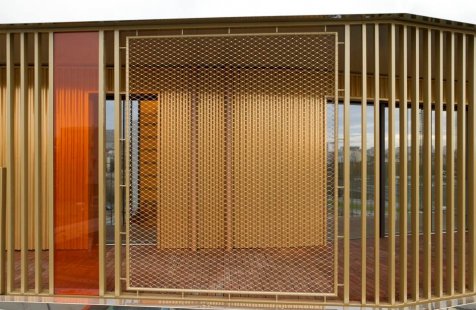

Colored X-TEND® nets as a design element

We offer colored X-TEND® nets in red, white, green, gold, and black.
